Pan Depth: 8”
Pan Capacity: 6 Quarts (5.7 Liters)
System Capacity: 7 Quarts (6.6 Liters)

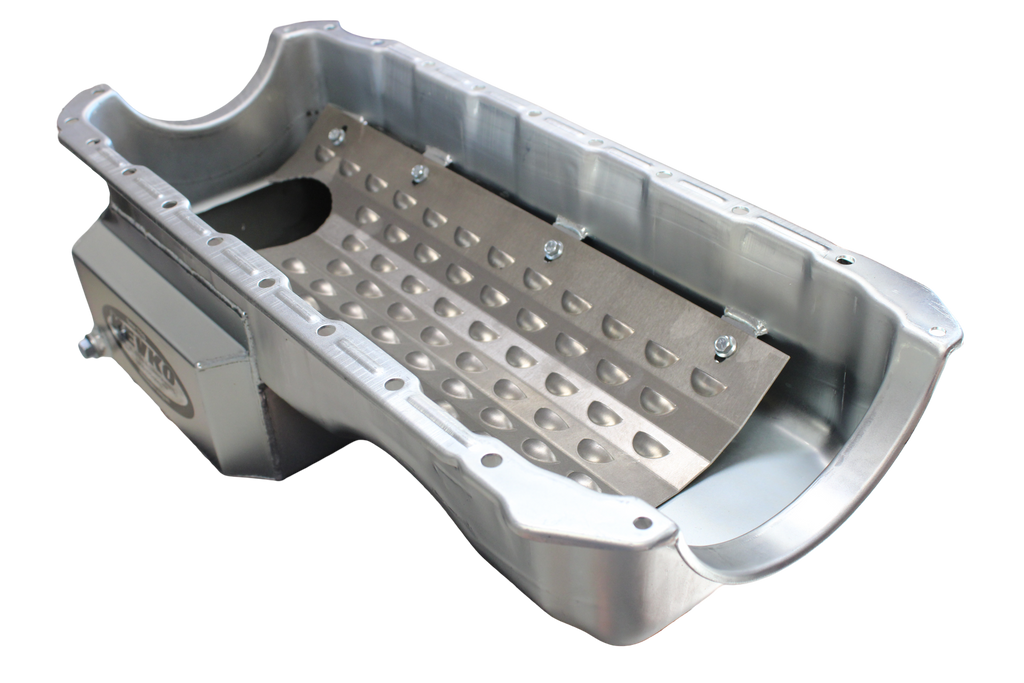

Description: Out 1071W uses our “Stroker” core to accept up to a 4.375 stroke when using steel rods. The 1071W comes with our full length aluminum louvered windage tray installed in the pan.
Fits most GM rear steer chassis except 1962-67 Chevy II, V8 Vega/Monza and 1955-57 Chevy. The pan has a 9.75" long by 10.5” wide sump, is 8” deep, and has a 3 gate assembly. This pan is an NHRA Accepted Stock Replacement Oil Pan.
Optional Accessories
(Kevko Oil Pans are sold including all required plugs. Kevko pickup tube and other accessories sold separate.)
| Part # | Description | |
| 1015 | Matching Pickup Tube for Stock and High Volume Pumps | ADD |
| M77 | Stock Volume Oil Pump | ADD |
| M77HV | High Volume Oil Pump | ADD |
| OS30061T | Gen 4 Fel-Pro 1-Piece Gasket | ADD |
| OS34407R | Gen 5 Fel-Pro 1-Piece Gasket | ADD |
| K128-NPT | 1/4" Universal Budget Rigid Dipstick | ADD |
| K128SS-NPT | 1/4" NPT Stainless Steel Universal Flex Dipstick | ADD |
| K128LO-NPT | 1/4" NPT LoKar Universal Flex Dipstick with Locking Top | ADD |
| DP-1 | Additional Drain Plug | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
